Create a Scrap

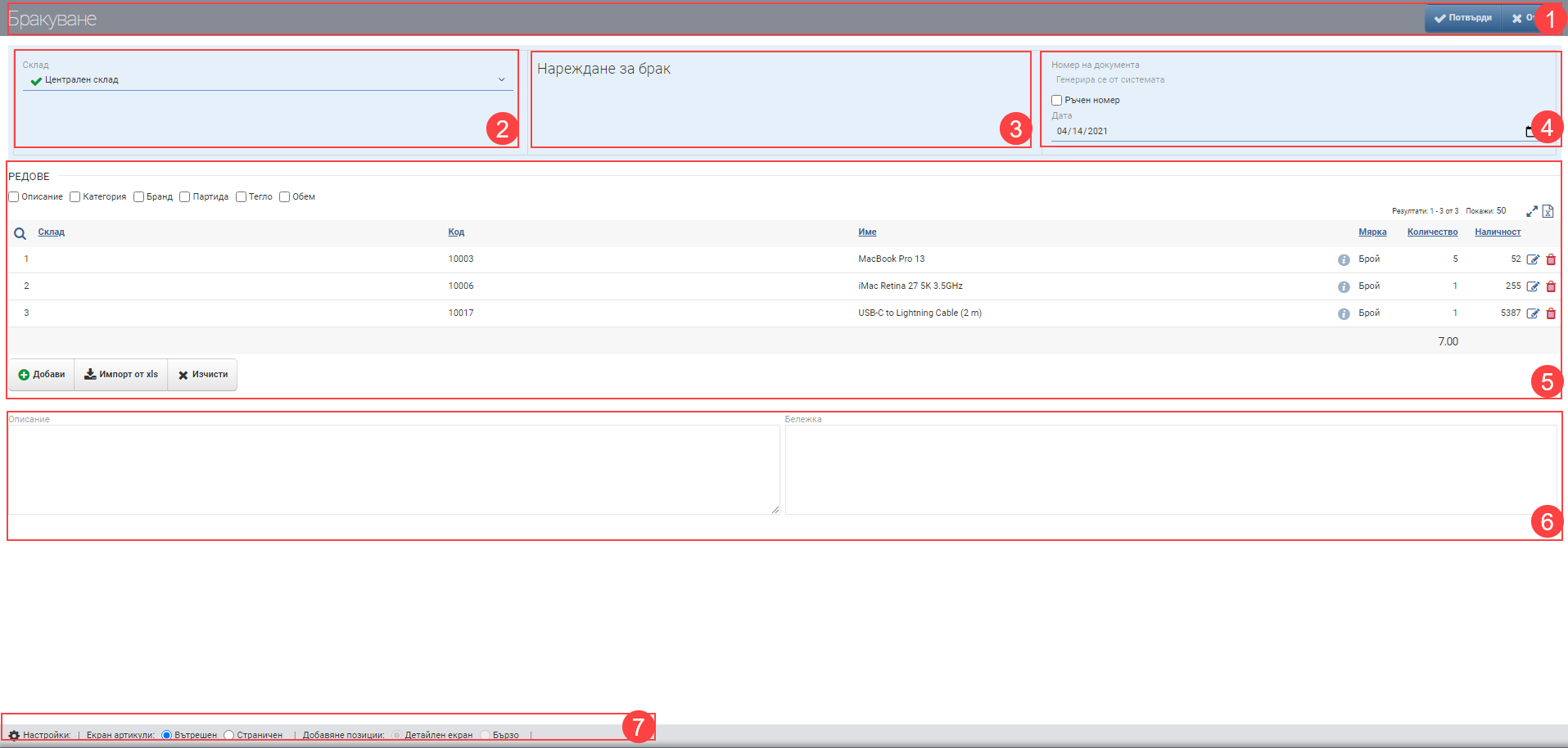

The interface consists of Header (1), Scrap From (2), Scrap To (3), Document Data (4), Lines (5), Description and Note (6), and Configure How to Add Lines (7):

Header (1)

In the Header (1) , you see the name of the document you are creating and two buttons for Confirm and Decline.

Scrapping by (2)

In the Scrapping field of (2) you have to specify in which warehouse you will perform the Scrapping. Selected items will come out of this warehouse.

You have to be the MOL of the warehouse to be able to do Scrapping!

Scrap to (3)

The Marriage Order is always loaded in the Marriage field next to (3 ) in this type of operation .

A pick order is not an object in the system and cannot be tracked for availability. If you want to keep track of the scrapped quantities in the system as stock, you can create a ‘Stock’ warehouse and move the selected items there.

Document details (4)

Document data (4) includes the following parameters:

Field/Checker	Description
Document number	The document number is automatically generated according to the set numbering rules. When the document is saved, the date and time are also saved. All documents that are automatically generated take these date and time unless they are explicitly changed.
Manual number	Checking “Manual Number” makes the Number field free for typing. The user decides what number the document will be.
Date of document	Date of issue of the document. Automatically loads current date, but can be changed by the user.

Lines (5)

In section Lines (5) you can manually enter items for scrapping or add them via XLS file.

Manually adding items is done by clicking the button with the corresponding name. You are presented with an interface with all items in the nomenclature. The interface consists of Filter (1) and Result (2):

In the free Search box you can search by word, code, brand, etc. to find the item you want. You also have the option to turn on an Advanced Filter with Categories, Brand, Features and Supplier, which can help you find things faster. In addition, you can further filter by available items only. The search is launched with the Magnifying Glass on the left, and the Hicks clears all filters.

The items/services found according to the criteria set by the Filter are ranked in the Result (2). The table consists of the following columns:

Column	Description
⊕	Opens the interface to add an item in detail
Code	Article code
Name	Item name
ⓘ	Opens item file

The items added from the detail add interface are arranged in Row (5) in a table with the following columns:

Column	Description
Warehouse	Warehouse/sub-warehouse for scrapping
Code	Article code
Name	Item name
ⓘ	Item file
Measure	Measure of the item
Quantity	Storage quantity
Availability	Displays the stock of the warehouse selected for scrapping
✎	Opens the line for editing
🗑	Deletes row

In addition to the columns containing basic information, you can include and exclude additional columns of detailed data by means of check boxes :

Column	Description
Description	Item description
Category	Category of item
Brand	Brand of the item
Batch	Batch of item
Weight	Displays the weight of the item as set in its file.
Volume	Displays the volume of the item as set in its file.

Description and Note (6)

Configuration of how to add rows (7)

Views of the Products and Elements screen
The two variants, Inner view and Side view, are switched by ticking the desired view in the Configuration. They are used in the same way.

To save the changes, you must press the Confirm button in the Header. If you want to exit without saving the changes, you must press the Close button.
